Product Advantages
● Overall, it is simple and beautiful.
● Easy to install, wide applicability, strong combinability
● High Durability
● System optimization can be carried out according to the actual roof environment.
Commercial photovoltaic power generation installation system
-

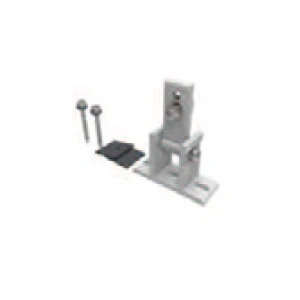

- A: Adjustable front foot
-

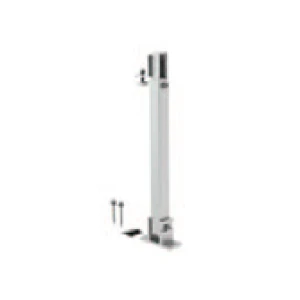

- B: Adjustable rear foot
-

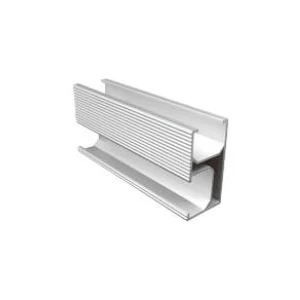

- C: Guide Rail G
-

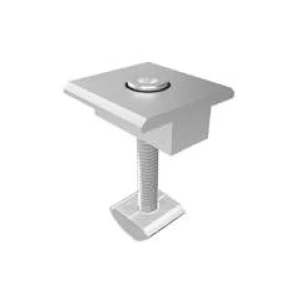

- D: Mid Clamp for PV Modules
-

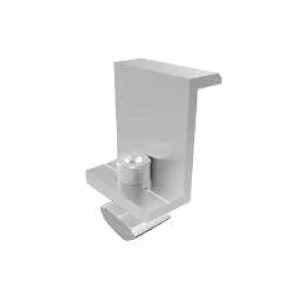

- E: Edge Clamp for PV Modules
-

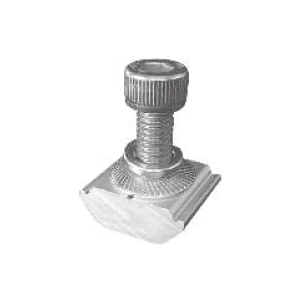

- F: Clamping Block and Nut Assembly
| SN | Product Number | Name | Specification | Material |
| A | HJ-AFL | Adjustable front foot | Base length 100mm | AL6005-T5 |
| B | HJ-ARL | Adjustable rear foot | 10-15°,15-30°30-60° | AL6005-T5 |
| C | HJ-SSR-G | Guide Rail G | 长1.05/2.1/3.1/3.15m | AL6005-T5 |
| D | HJ-FIC-T | Mid Clamp for PV Modules | 35/40/45/50mm | AL6005-T5 |
| E | HJ-FEC | Edge Clamp for PV Modules | 35/40/45/50mm | AL6005-T5 |
| F | HJ-SNK | Clamping Block and Nut Assembly | Guide Rail dedicated | AL6005-T5 |
Installation location: Color steel tile/iron sheet tile roof
Supporting guide rail: Aluminum alloy extruded guide rail
Solar panel type: crystalline silicon or amorphous silicon
Product Material: High-strength aluminum alloy AL6005-T5, stainless steel 304
Complies with standards: AS/NZS 1170 and other international standards
Installation angle: parallel to the tile surface
Wind resistance: 25m/s (level 10 wind speed)
Snow load: 1.4KN/㎡
Corrosion Protection Treatment: Anodizing & Surface Shot Blasting
Quality Guarantee: 10-year quality assurance and a 25-year service life
